Lianyungang Shengfan Quartz Product Co., Ltd
7 Years
| Ask Lasest Price | |
| Brand Name : | SF |
| Model Number : | QGP-2 |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, D/P, D/A, Western Union |
| Supply Ability : | 100000 pieces |
| Delivery Time : | 5-15 work days |
Product description:
Quartz glass is an extremely versatile material used in a range of different applications. It has outstanding thermal properties, excellent optical transmission, with good electricaland corrosion performance.

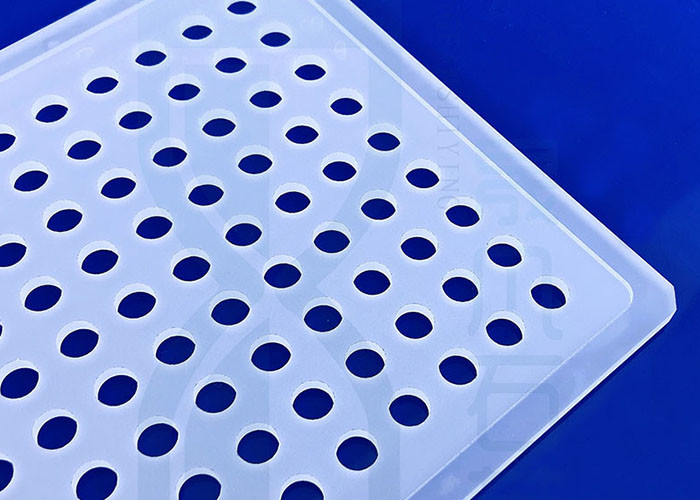

Milky White quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window.
Product Specification:
1.High temperature resistant, quartz glass plate can work under 1200°C continuously,and in short time can even work under 1450°C,
its softening temperature is 1650°C,and the melting temperature is 1750-1800°C.
2.Corrosion resistant, Except hydrofluoric acid, Quartz Plate Of Optical Grade do not react with anyacid and base except hydrofluoric acid.the stability is 30 tims of the ceramic,and 150 times of stainless steel .
3.Excellent thermal shock stability
4.High transmission to 85%
5.Electric insulation ,it is 10000 times of usual glass
| Shengfan Quartz plate characteristic | |
| *Brand | shengfanquartz |
| *SIO2 | 99.99% |
| *Density | 2.2(g/cm³) |
| *Degree of hardness moh’ scale | 6.6 |
| *Melting point | 1732℃ |
| *Working temperature | 1100℃ |
| *Annealing point | 1180℃ |
| *Softening point | 1630℃ |
| Tolerance | ±0.01 | ±0.05mm | ±0.1mm |
| Surface treatment | 60/40 | 40/20 | |
| Shape | square amd circle | custom shape | any shape can be customed |
| Application case | Remote control window | vacuum cup | germicidal lamp |
Company Introduction:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million. With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A:Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
DHL, UPS, FedEx or TNT are optional for small order. It usually
takes 3-5 days to arrive.
Airline and sea shipping are also available.
|
|
