    99.99% Laser Grooving Fused Silica Quartz Glass Window

    Ask Lasest Price
    Brand Name : ShengFan
    Model Number : QSP-02
    Supply Ability : 10000 Piece/Pieces per Month
    Price : $4.70 - $5.00/pieces
    • Product Details
    • Company Profile

    99.99% Laser Grooving Fused Silica Quartz Glass Window

    Shengfan Quartz plate characteristic
    *Brand
    shengfanquartz
    *SIO2
    99.99%
    *Density
    2.2(g/cm³)
    *Degree of hardness moh’ scale
    6.6
    *Melting point
    1732℃
    * Working temperature
    1100℃
    *Annealing point
    1180℃
    *Softening point
    1630℃
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    Setting Information
    Color
    Transparent
    Shape
    Circular / Round
    Standard
    JGS1,JGS2,JGS3
    Visible light transmittance
    Above 93%
    Diameter
    1-800mm
    Thickness
    0.2-100mm
    Application
    Optics quartz windows
    Density
    6.6
    Light Transmittance
    >92%
    Hardness
    Mose 6.5
    Resistance Value
    1000 times than ordinary glass
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    Product Details
    1. SiO2> 99.99% ,high purity quartz tube. 2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃. 3.Excellent visual and chemical performance . 4. without surface coating and infectant. 5. Health care and environmental protection. 6. Any dimension can be made. 7. CE.RoHs SGS approved.
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    Density
    2.2x103 kg/m3
    Hardness
    5.5 - 6.5 Mohs' Scale 570 KHN 100
    Design Tensile Strength
    4.8x107 Pa (N/m2) (7000 psi)
    Design Compressive Strength
    Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730
    Bulk Modulus
    3.7x1010 Pa (5.3x106 psi)
    Rigidity Modulus
    3.1x1010 Pa (4.5x106 psi)
    Softening Point
    1730°C
    Annealing Point
    1215°C
    JGS1(ZS-1)
    JGS2(ZS-2)
    JGS3(HS)
    Spectral characteristics
    180-2500nm
    200-2500nm
    260-3500nm
    The average transmittance
    90%
    85%
    85%
    Bubble class
    0
    2
    2
    Birefringence
    1-2
    1-2
    1-2
    Grain structure
    1
    2
    2
    Fringe
    1-2
    2
    2
    Uniformity
    1-2
    2
    2
    Fluorescence
    1
    2
    2
    Radiation Performance
    Does not change clolor
    Sight discoloration
    Change color

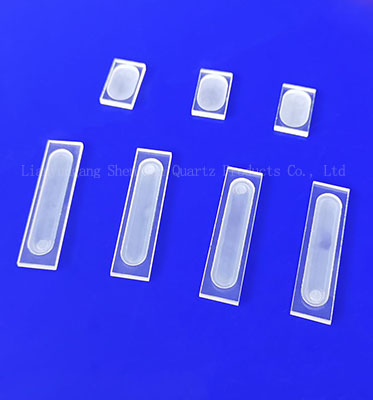

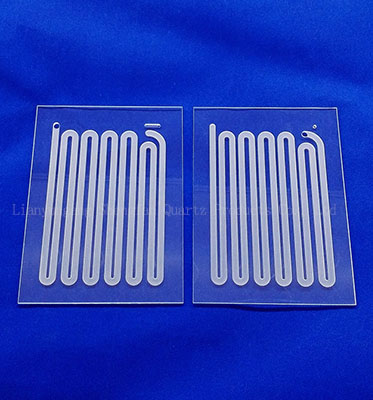

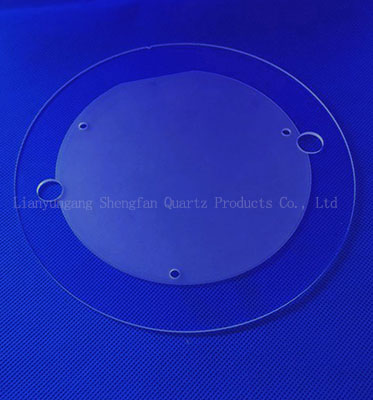

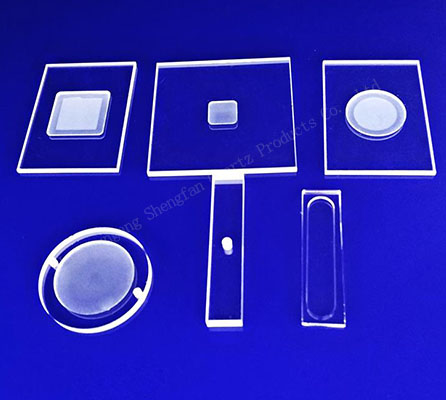

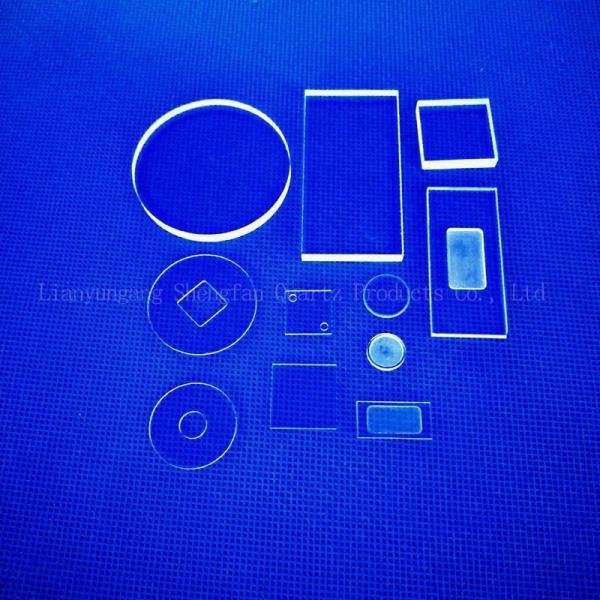

    Details Images
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    Products range:

    1.Quartz glass plate(size:2-1400mm,thickness:0.1-50mm) 2.Quartz glass machining(various shapes and punching carving,deep drilling,specific quartz part) 3.Quartz rod(light bar,semicircle light bar) 4.Processing all type of special shaped and customized instruments.
    production flow
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    Packing & Delivery
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    99.99% Laser Grooving Fused Silica Quartz Glass Window
    Company Introduction
    Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million. With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
    99.99% Laser Grooving Fused Silica Quartz Glass Window

    Our Services & Strength

    The company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate
    FAQ
    Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2. What about the delivery time? A:Within 15 days after receiving deposit. Q3. Do you have any MOQ limit? A: Low MOQ, 1pc for sample checking is available Q4. How to proceed an order in your factory? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q5. How do you ship the goods and how long does it take to arrive? DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
