High Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LED

Lianyungang Shengfan Quartz Product Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LED from wholesalers

    Buy cheap High Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LED from wholesalers
    • Buy cheap High Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LED from wholesalers
    • Buy cheap High Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LED from wholesalers
    • Buy cheap High Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LED from wholesalers
    • Buy cheap High Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LED from wholesalers
    • Buy cheap High Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LED from wholesalers
    • Buy cheap High Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LED from wholesalers

    High Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LED

    Ask Lasest Price
    Brand Name : SF
    Model Number : SF221010001
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10,000 pieces per month
    Delivery Time : 5-30 work days
    • Product Details
    • Company Profile

    High Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LED

    Product description:

    Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window.


    Quartz plate:
    1. Translucence Quartz Glass thickness 0.3-30mm, OD: 1-500mm
    2. Thickness Tolerance: +/-0.1mm
    3. Raw Material: Quartz , SiO2: >=99.99%
    4. Color : Clear , Translucence.
    5. Surface quality :40/20 60/40
    6. Transmittance >90%
    7. Sharpe: Square , Circle, Can make the size and shape according to customer's require.


    Support customization:
    Their size can designed according your need and can be grinded and polishing the sides according your need!


    Application:

    The quartz glass plate is widely used in UVC/LED light,optical instrument,sight glass,observation window for furnace,semiconductor,photoelectron,military industry,metallurgy and test for lab.


    Applied range:
    This product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications,
    military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields.

    Quick Details
    Place of OriginJiangsu,China
    BrandSF
    MaterialGlass,High quality Optical Glass
    UsageOptical
    StructureDouble Convex
    ShapeSpherical
    Dimension Tolerance+/-0.02mm
    Processing Range1-1000mm

    Shengfan Quartz plate characteristic
    SIO299.9%
    Density2.2(g/cm³)
    Degree of hardness moh’ scale6.6
    Melting point1732℃
    Working temperature1100℃
    Max temperature can reach in a short time1450℃
    Visible light transmittanceAbove 93%
    UV spectral region transmittance80%
    Annealing point1180℃
    Softening point1630℃
    Strain point1100℃

    JGS1(ZS-1)JGS2(ZS-2)JGS3(HS)
    Spectral characteristics180-2500nm200-2500nm260-3500nm
    The average transmittance90%85%85%
    Bubble class022
    Birefringence1-21-21-2
    Grain structure122
    Fringe1-222
    Uniformity1-222
    Fluorescence122
    Radiation PerformanceDoes not change clolorSight discolorationChange color

    High Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LED

    High Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LED

    High Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LEDHigh Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LED

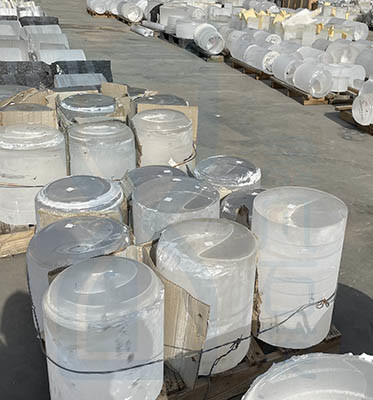

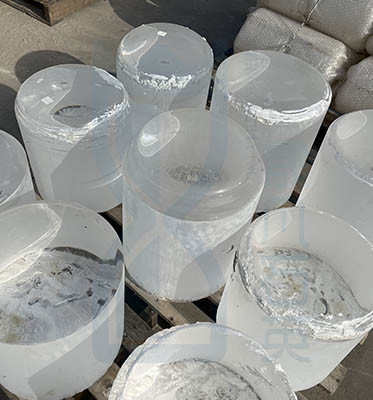

    Raw material:

    High Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LEDHigh Temperature Resistant Quartz Glass Lens 99.99% Purity Water Proof For UVC LED


    Company profile:

    Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million.

    With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.


    Our Services & Strength
    The company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate


    LIANGYUNGANG SHENGFAN QUARTZ PRODUCTS CO., LTD

    TEL : 00860518878938285
    Mobile : 008619901512909
    Wechat : shengfanquartz
    E-mail : shengfanquartz@163.com
    Website : https://shengfanquartz.1688.com
    Address : NO.169 Mingzhu Rd, Economic Development Zone, Donghai country,Lianyungang city, Jiangsu prov.,China.
