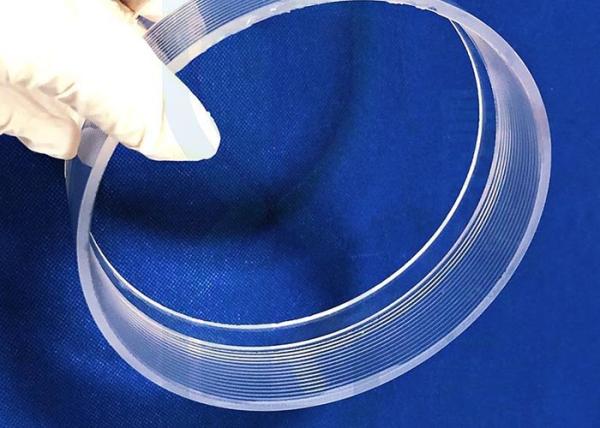

    Screw Thread Winding Fused Quartz Tube Od 3mm

    Ask Lasest Price
    Brand Name : shengfan
    Model Number : T-1
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100,000 pieces per month
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    Screw Thread Winding Fused Quartz Tube Od 3mm

    Product Description:

    Fused clear silica quartz glass tube is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window.


    1. High purity :SiO2> 99.99%.
    2. Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
    3. Health care and environmental protection.
    4. No air bubble and no air line.
    5. Excellent electrical insulator.


    HIGH TEMPERATURE RESISTANT

    Quartz glass hardening temperature about 1730℃.
    Can be used for a long time under 1100℃.
    The highest temperature can reach 1450℃.


    CORROSION RESISTANT

    In addition to hydrofluoric acid, quartz glass has no chemical reaction withother acid. Its acid resistance is 30 times that of Ceramic.150 times that of stainless steel Especially the chemical stability at low temperature.
    Which can not be compared with any other engineering materials.


    GOOD THERMAL STABILITY

    The thermal contraction coefficient of quartz glass.
    Can suffer severe temperature changes.
    The quartz glass heated to 1100℃
    also will not burst into cold water.


    GOOD PERVIOUS TO LIGHT

    Quartz glass has good transmittance in all spectral bands from purple to red.
    The visible light transmittance is above 93% specially in the ultraviolet spectral region.
    And the maximum transmittance is over 80%.


    GOOD ELECTRICAL INSULATION

    The resistance of quartz glass is 10,000 times that of ordinary and has good electrical performance even at low temperature


    Application of standard clear quartz tube

    halogen lamp, mercury lamp, single end lamp,automobile lamp, stage lamp, The thermoelectric boiler, The photocopier lamp, Water treatment lamp casing, quartz ware and pipe.


    Support customization
    Their size can designed according your need and can be grinded and polishing the sides according your need!


    Shengfan Quartz plate characteristic
    SIO299.9%
    Density2.2(g/cm³)
    Degree of hardness moh’ scale6.6
    Melting point1732℃
    Working temperature1100℃
    Max temperature can reach in a short time1450℃
    Visible light transmittanceAbove 93%
    UV spectral region transmittance80%
    Annealing point1180℃
    Softening point1630℃
    Strain point1100℃

    Screw Thread Winding Fused Quartz Tube Od 3mmScrew Thread Winding Fused Quartz Tube Od 3mm
